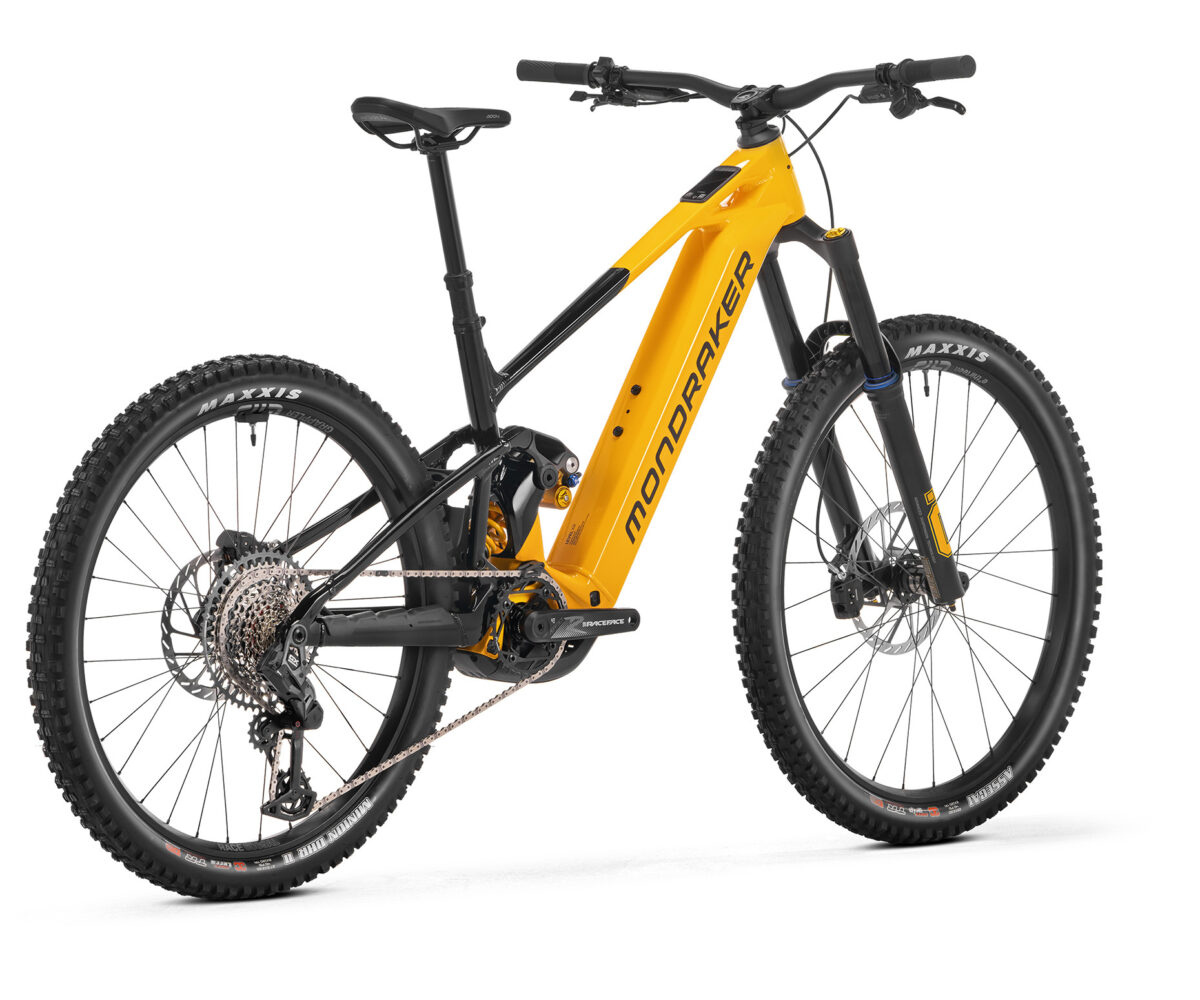

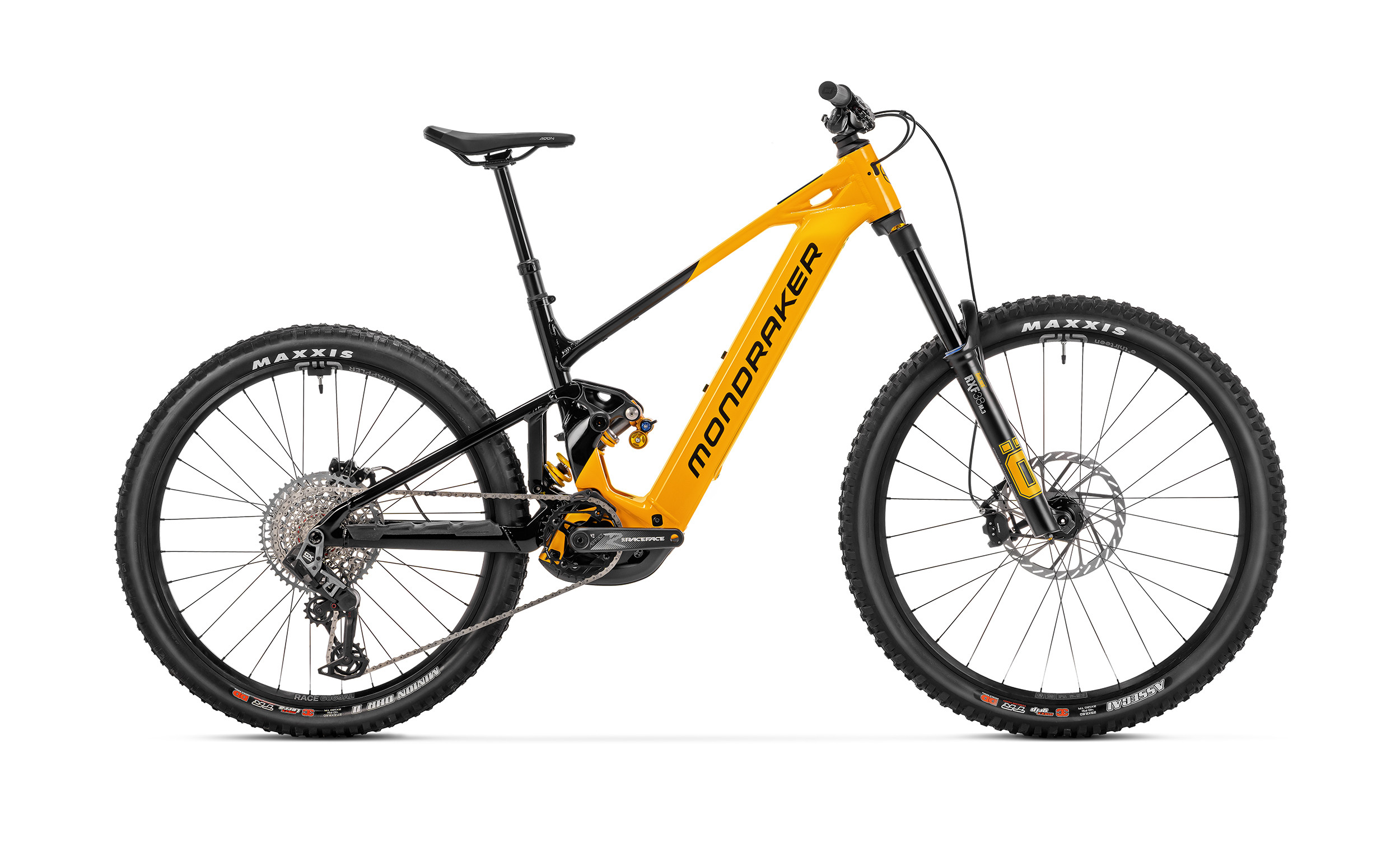

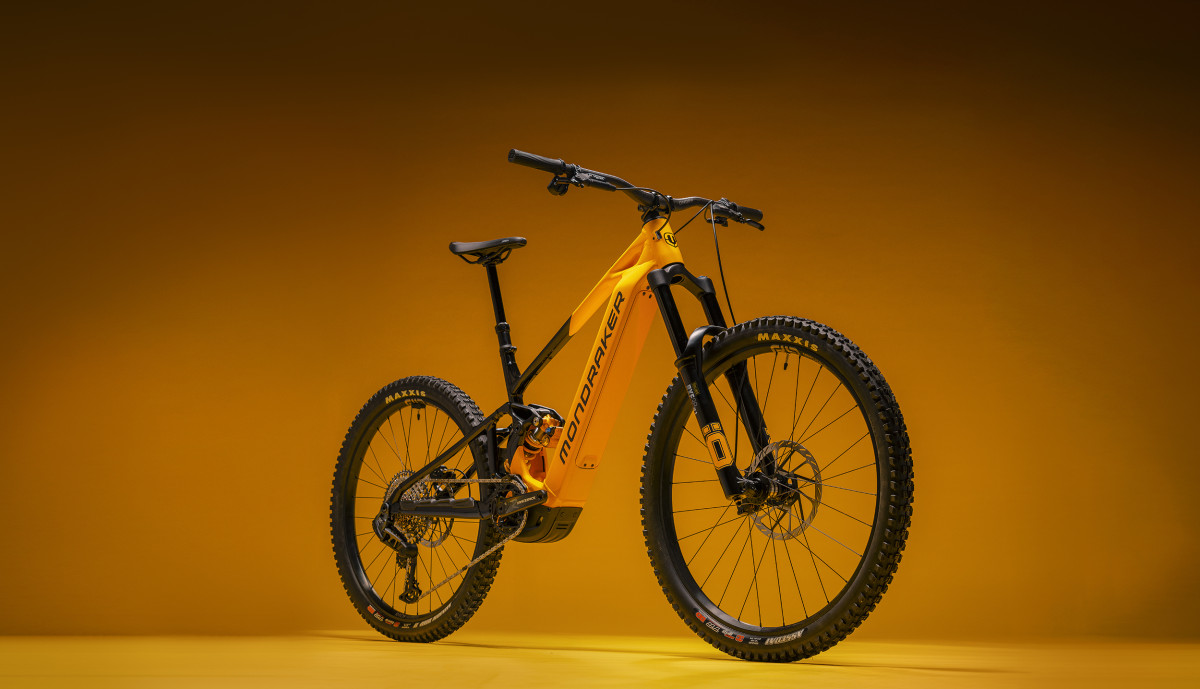

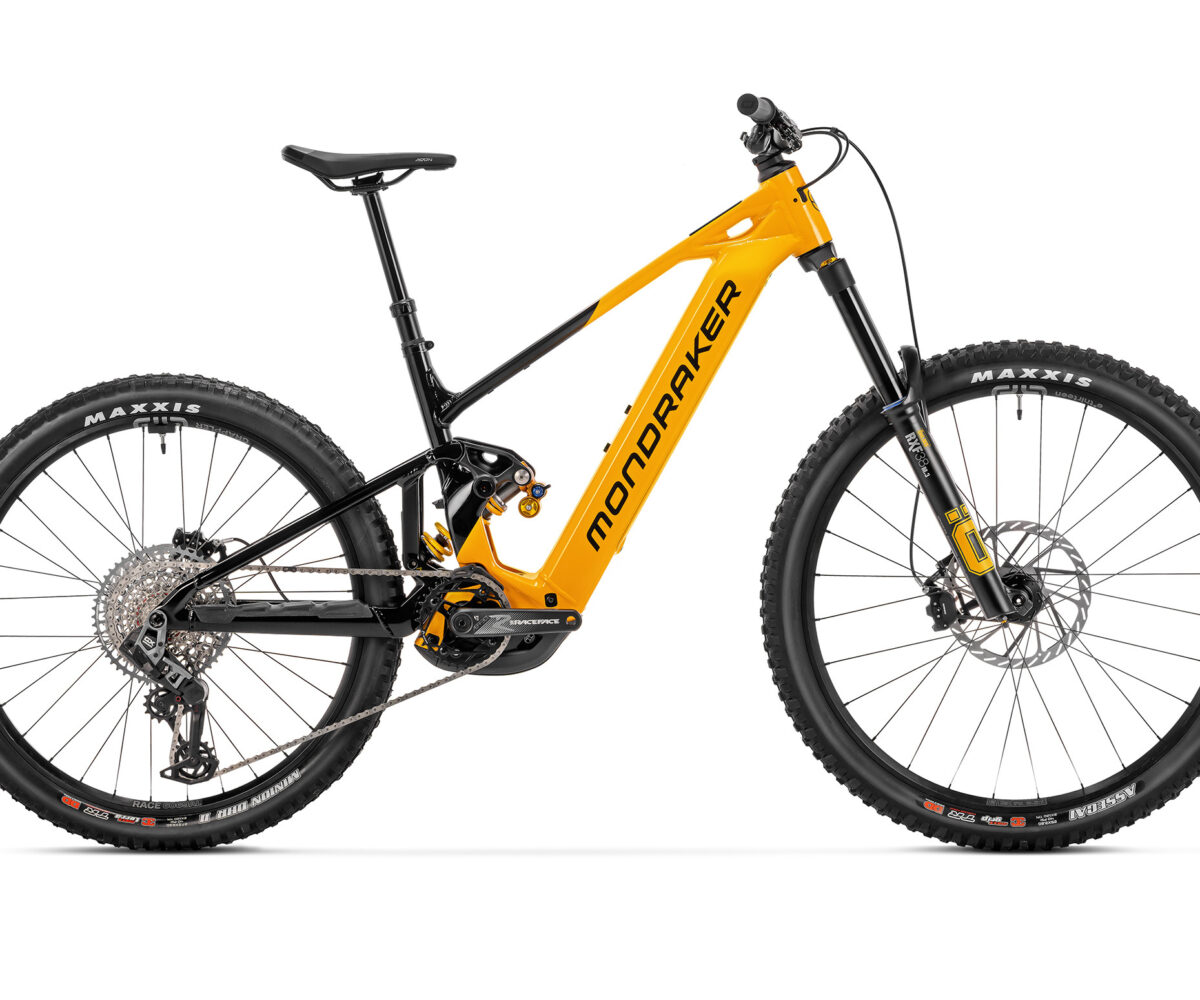

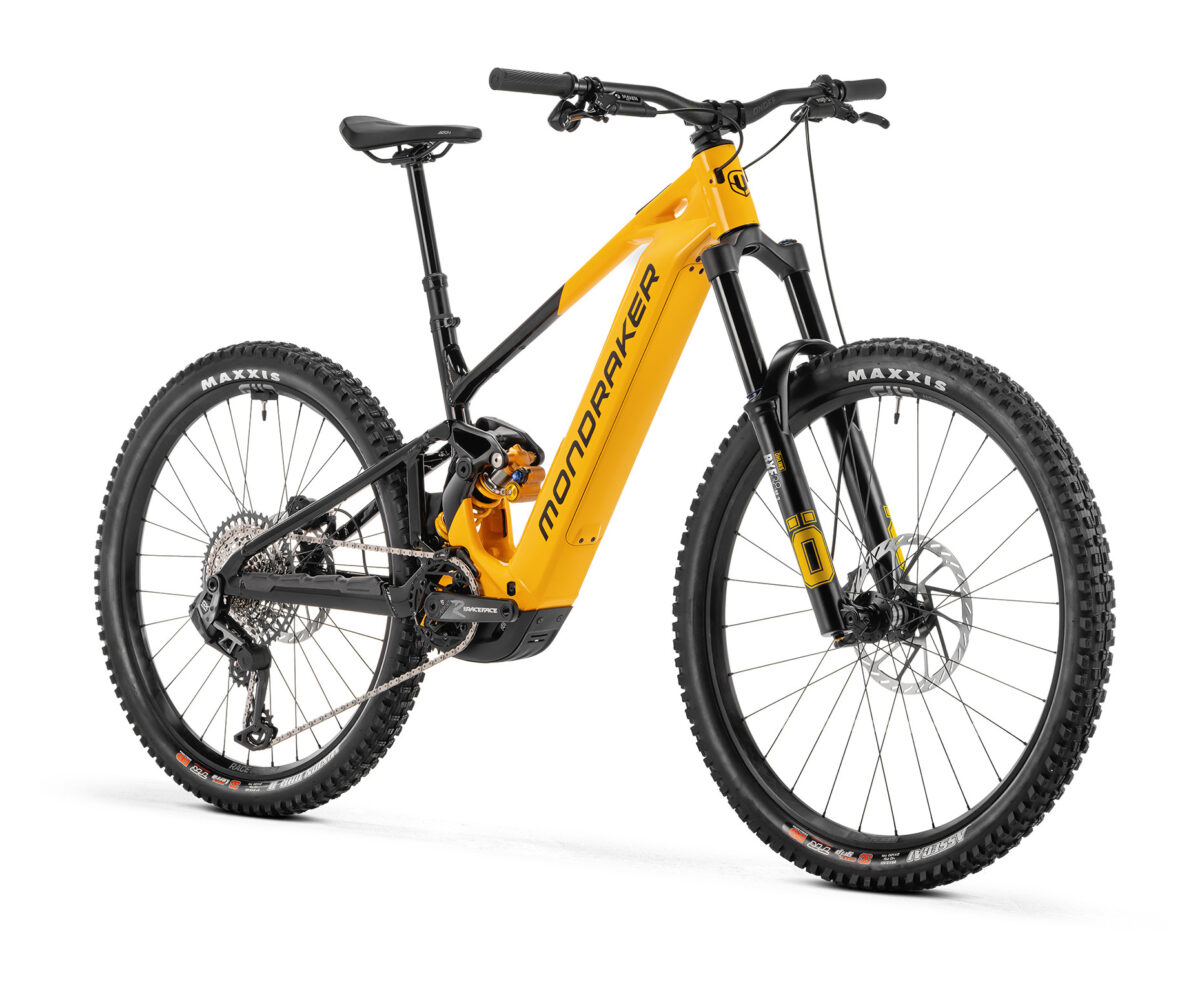

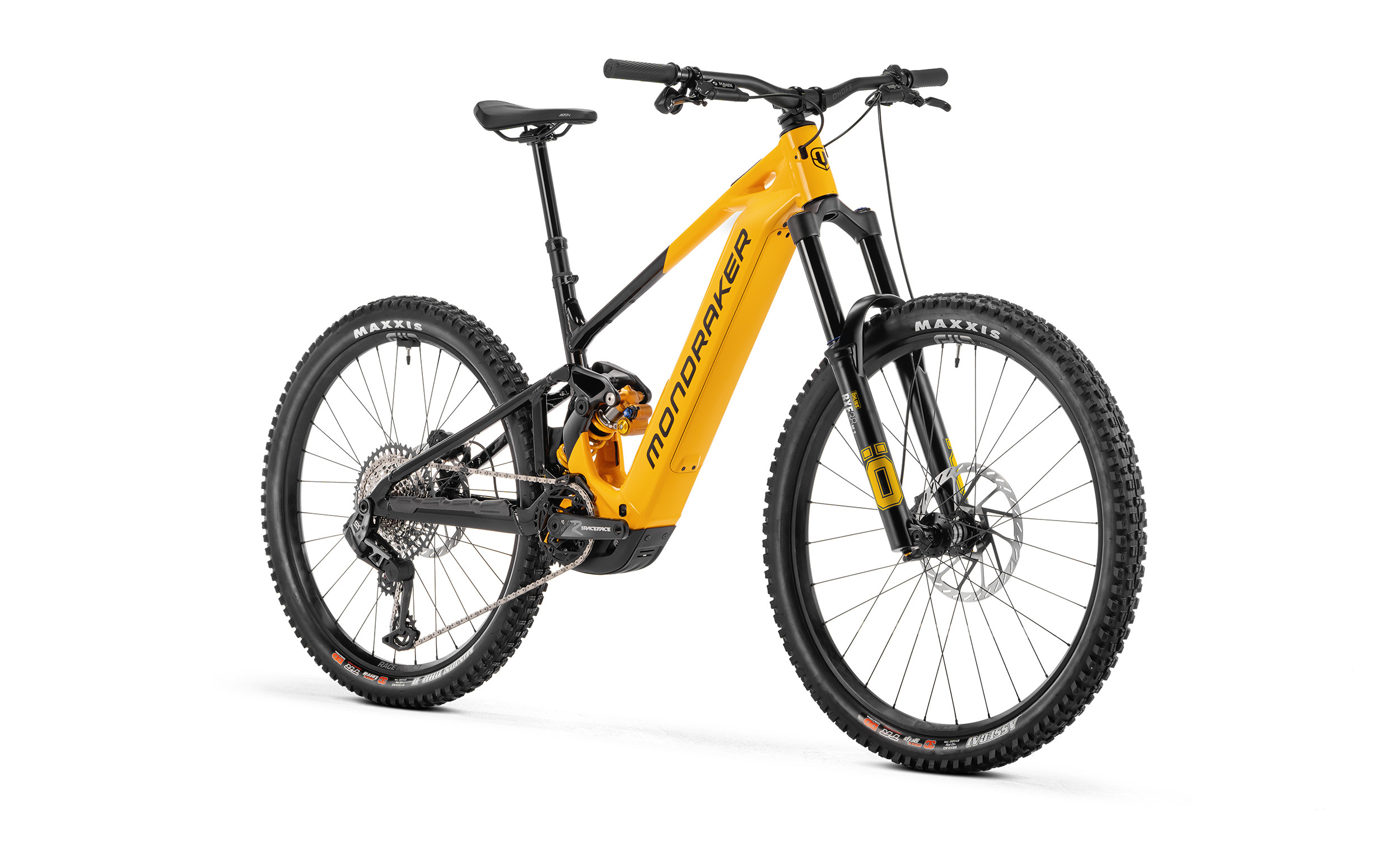

Mondraker Level XR

Todellinen superenduro Öhlins alustalla!

LEVEL XR: ÖHLINSIN YHTEISTYÖ

Malliston lippulaivamalli, Level XR on yhteistyössä ruotsalaisen jousitusguru Öhlinsin kanssa tehty pyörä, joka tarjoaa ennennäkemätöntä säätöä ja suorituskykyä. Tässä lippulaivamallissa on sama päivitetty Bosch CX -moottori (100 Nm vääntömomentti) + 800 Wh irrotettava akku kuin muissakin malleissa.

• Öhlins RXF 38 fork and TTX22 M.2 shock

• SRAM Maven Silver brakes

• SRAM GX Eagle AXS T-Type drivetrain (10-52T, 34T chainring)

• Maxxis Assegai 29″x2.6″ WT (front) / Minion DHR II 27.5″x2.6″ WT (rear)

• 800mm-wide ONOFF S9 carbon handlebar

9799,00 €

Components

Technical specs

Frame

Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

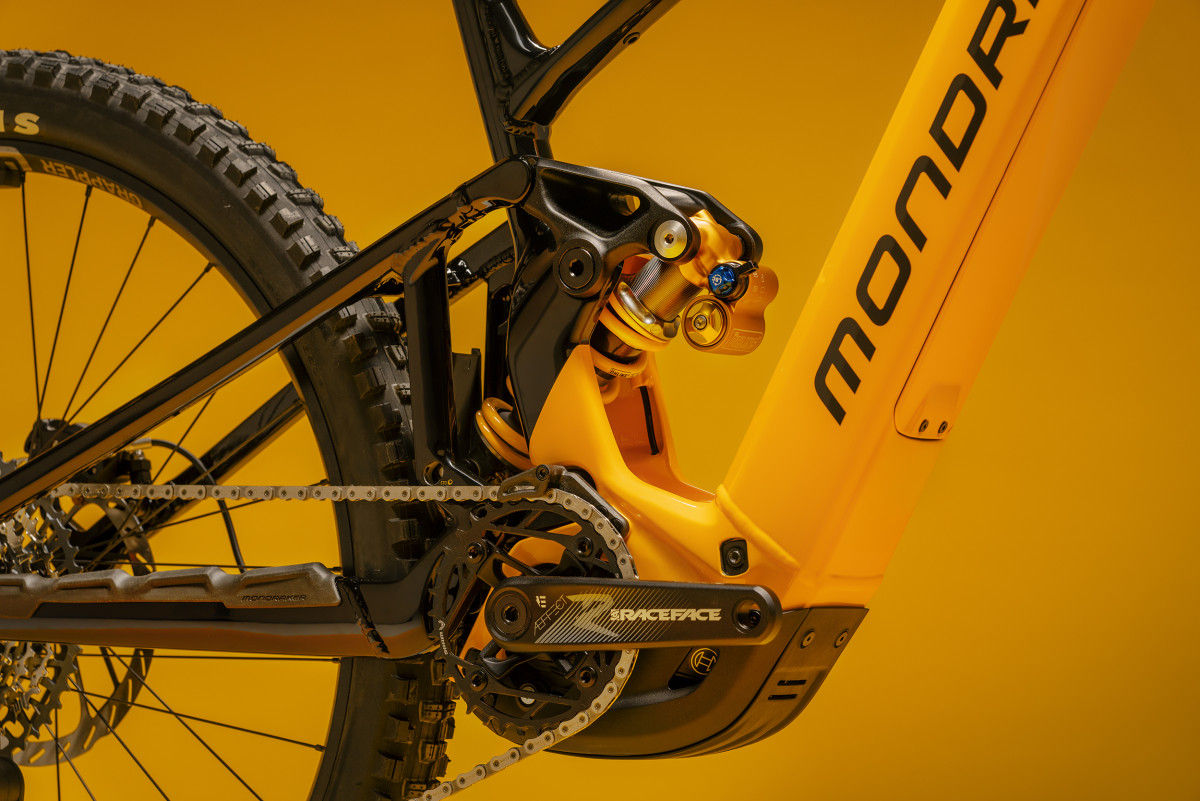

Rear shock

Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs
Fork

Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle

FIZIK Terra Aidon X5 145mm

Front brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake

Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

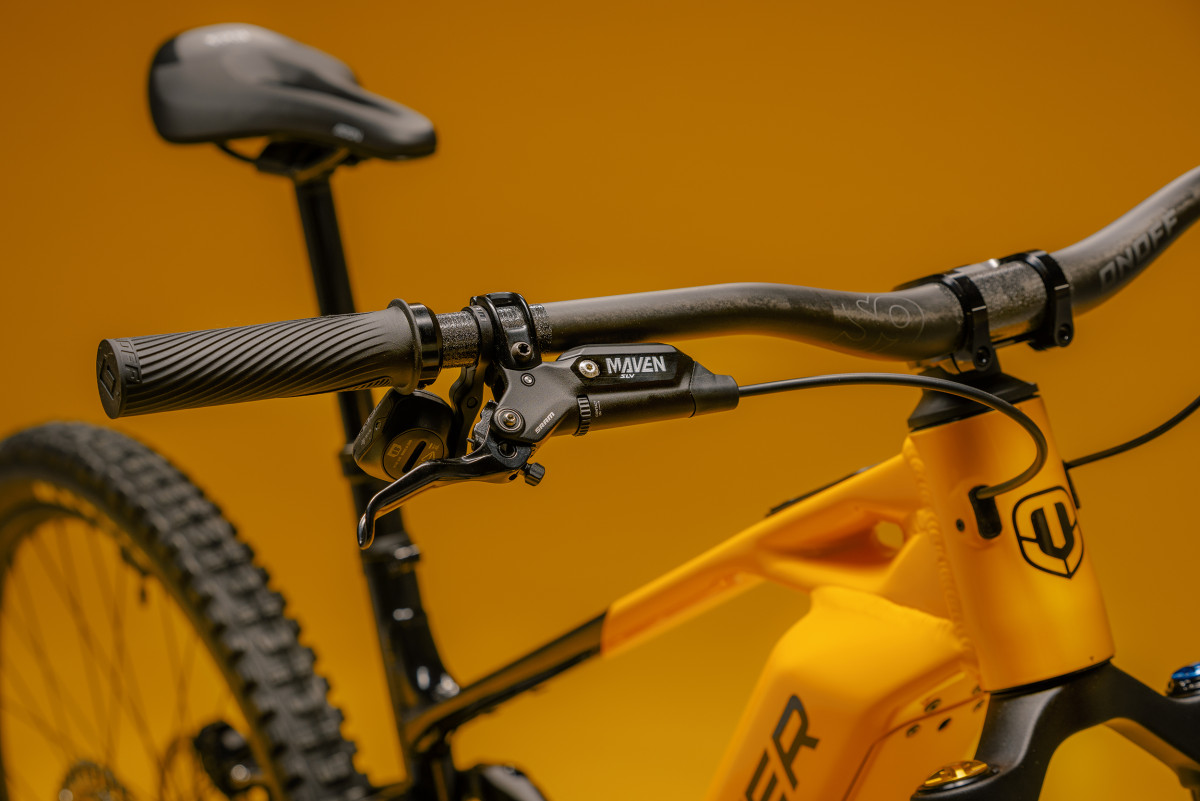

Brake lever

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims

e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27”5 rear

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire

Maxxis Assegai 29×2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5×2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

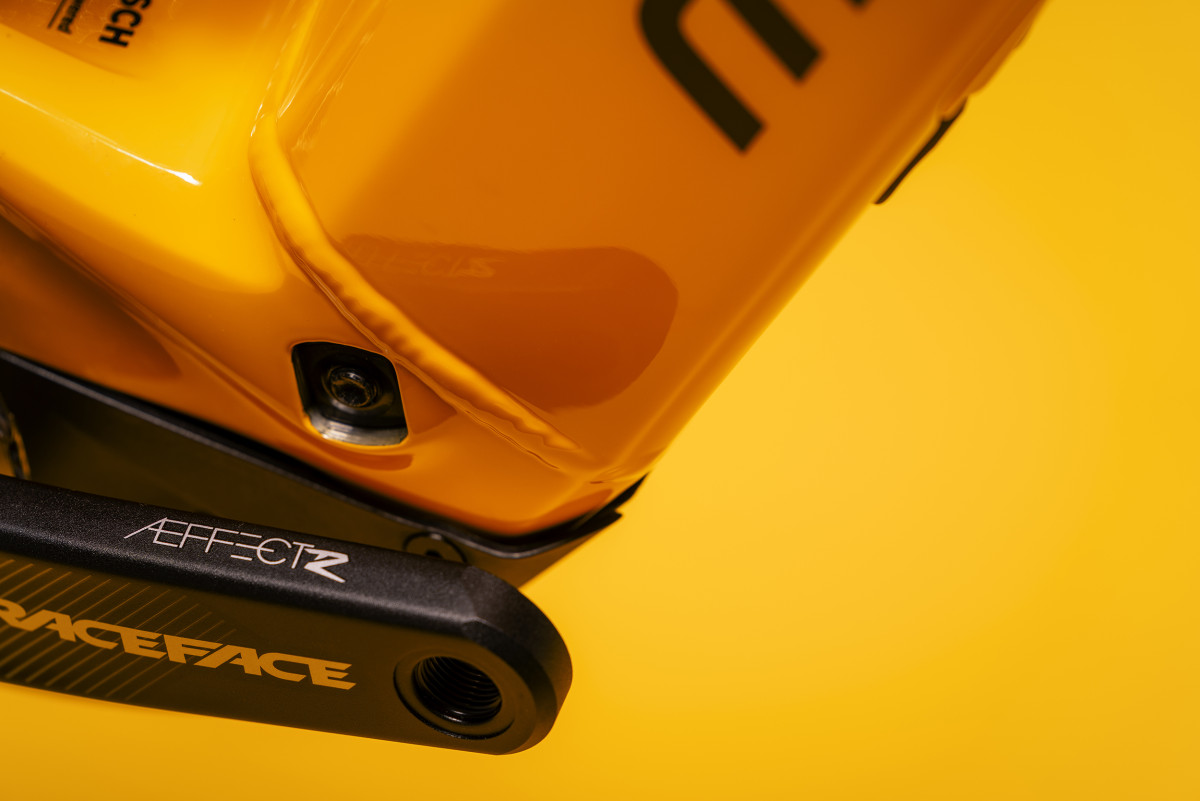

Crankset

Race Face Aeffect ebike, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain

Sram GX Eagle T-Type, 12s, Powerlock

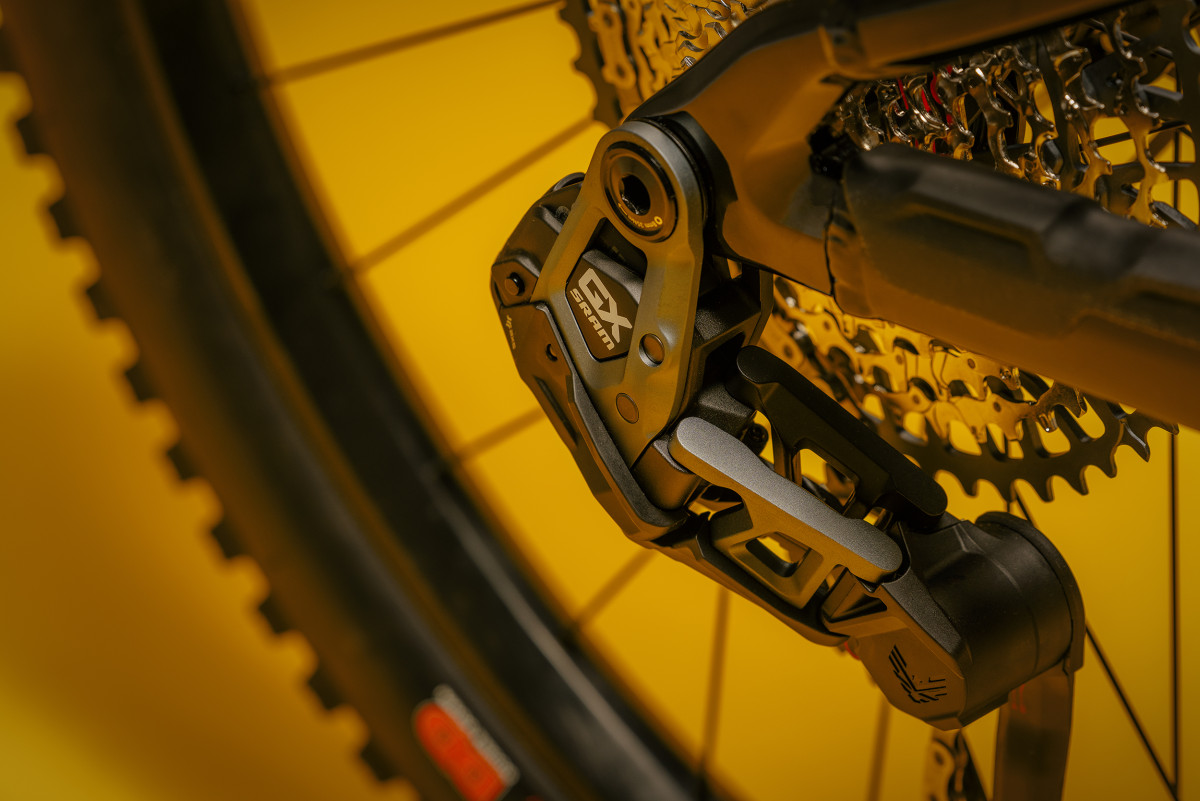

Rear derrailleur

Sram GX Eagle AXS T-Type,12s
Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1275, 10-52T, T-Type, 12s
Weight

25,9 kg

Display

Kiox 400 / Bosch Mini Remote
Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh
