COMPONENTS
TECHNICAL SPECS
-
Frame

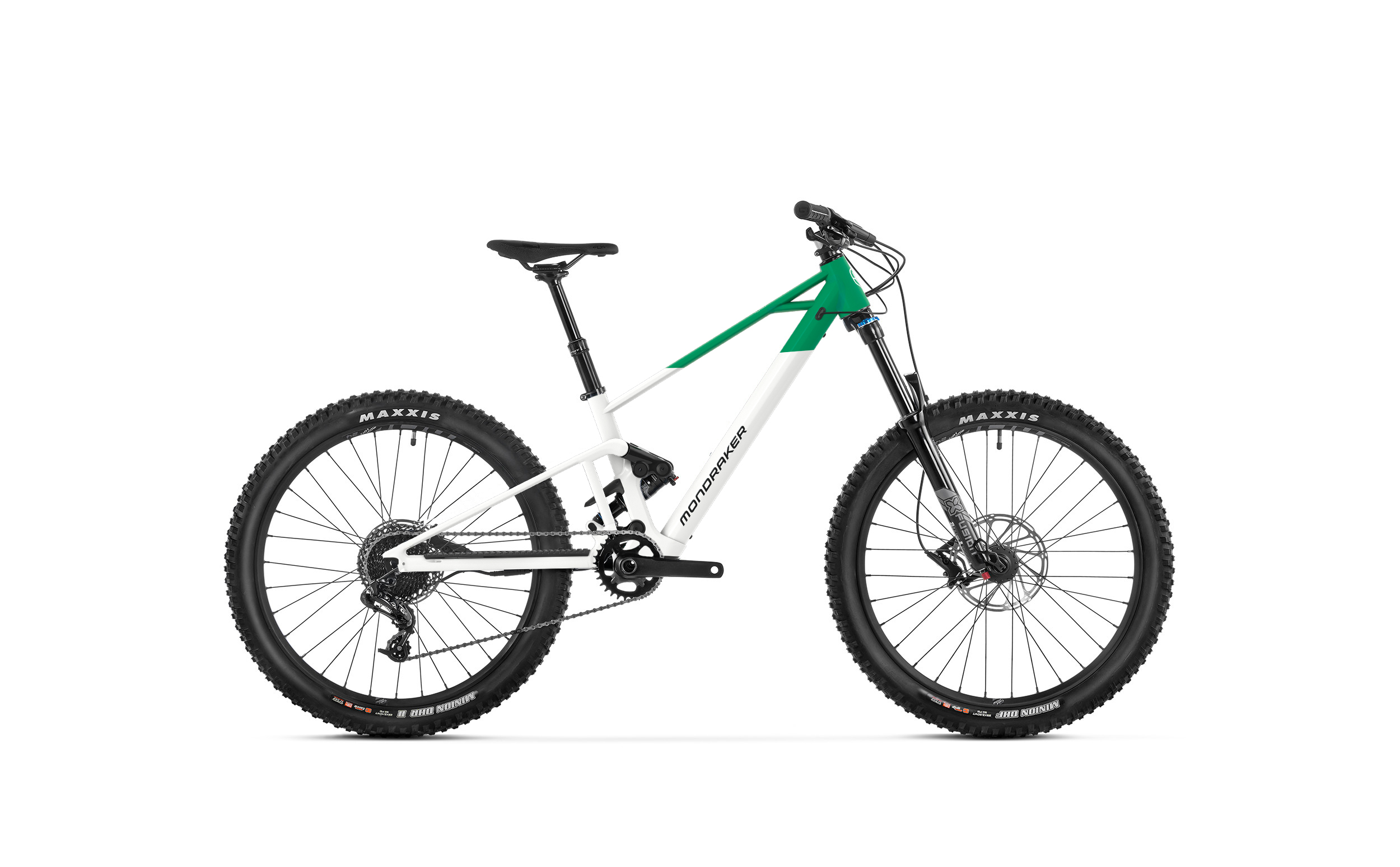

F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes
One size: 300mm
-
Rear shock
X-Fusion 02PRO R, 165×42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Shock settings
A-Tune light compression
-
Fork
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset
Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
-
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
-
Grips
Onoff Twin, 1lock-on
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 100mm
-
Saddle
SDG Fly JR
Front brake
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
-
Rear brake
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level, tooled reach adjust, lever pivot bushings
-
Rims
MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
-
Front hub
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub
Mahle-Ebikemotion X-35, HG freehub
-
Front tire
Kenda Regolith 24×2.4 120TPI, Folding TLR
Rear tire
Kenda Regolith 24×2.4 120TPI, Folding TLR
-
Crankset
Samox DM 30T steel, 152mm
Rings
30T, steel
-
Bottom bracket
BSA, 73mm
Pedals
SDG Slater JR
-
Chain
Sram PC1031 10s, Powerlock
Rear derrailleur
Sram GX, 10s, short cage, X-actuation 1:1
-
Shift levers
Sram trigger GX 10s, X-actuation 1:1
Casette
Sram PG 1020 11-36T, 10s
-
Derailleur hanger
Mondraker M077
Weight
16,2 kg
-
Display
Mahle-Ebikemotion
Motor
Mahle-Ebikemotion X-35
-
Battery
Mahle-Ebikemotion Internal 250Wh
