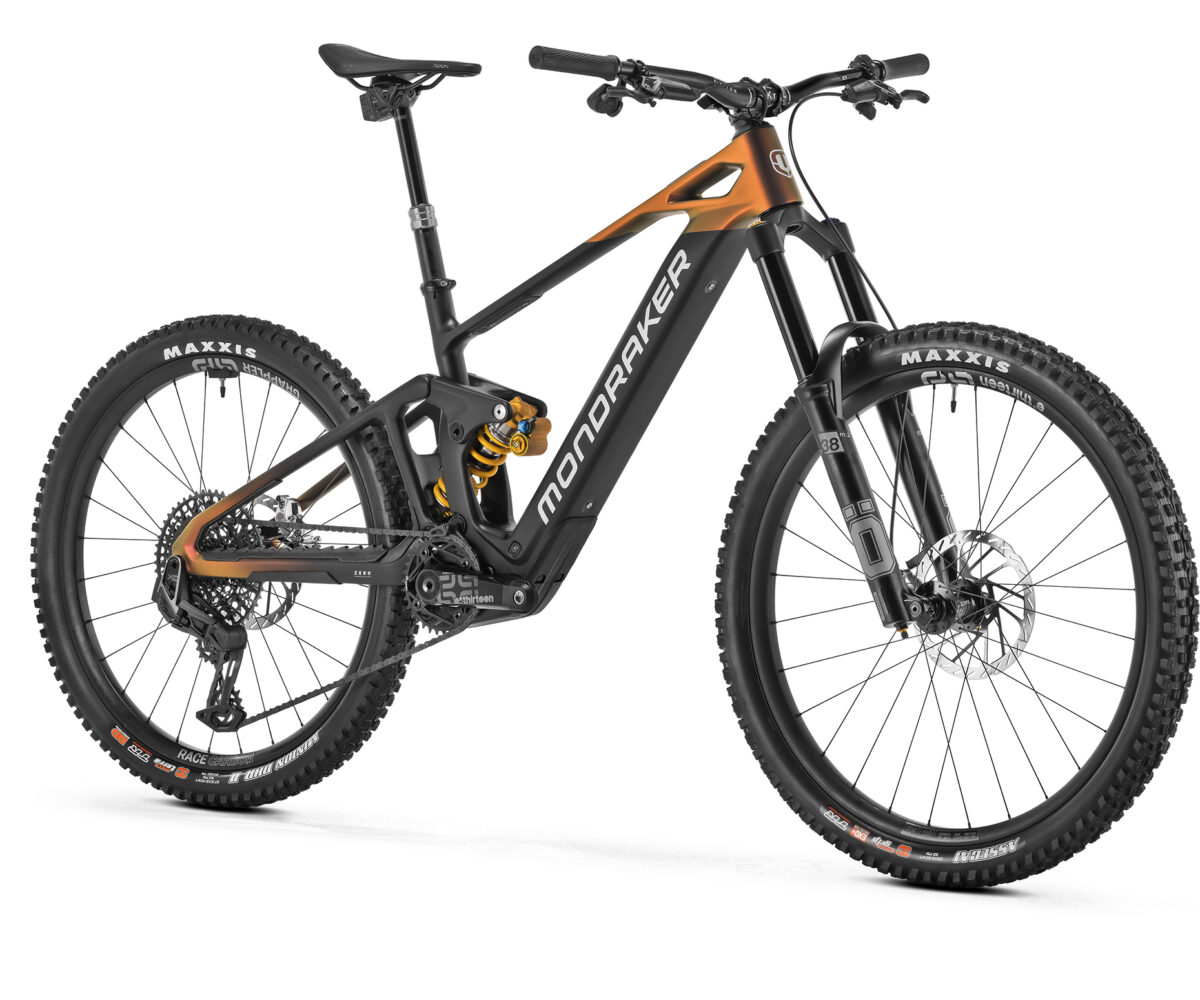

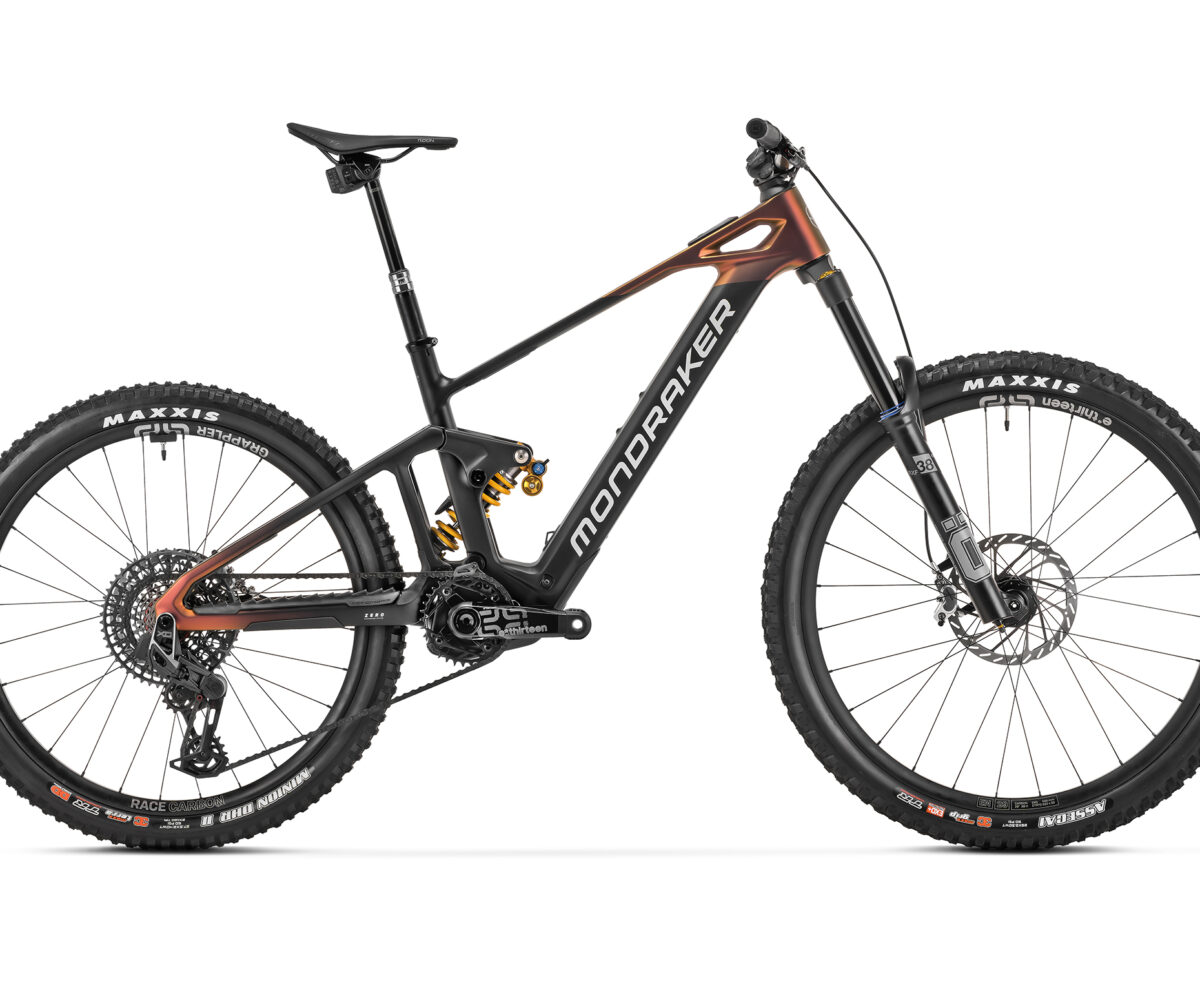

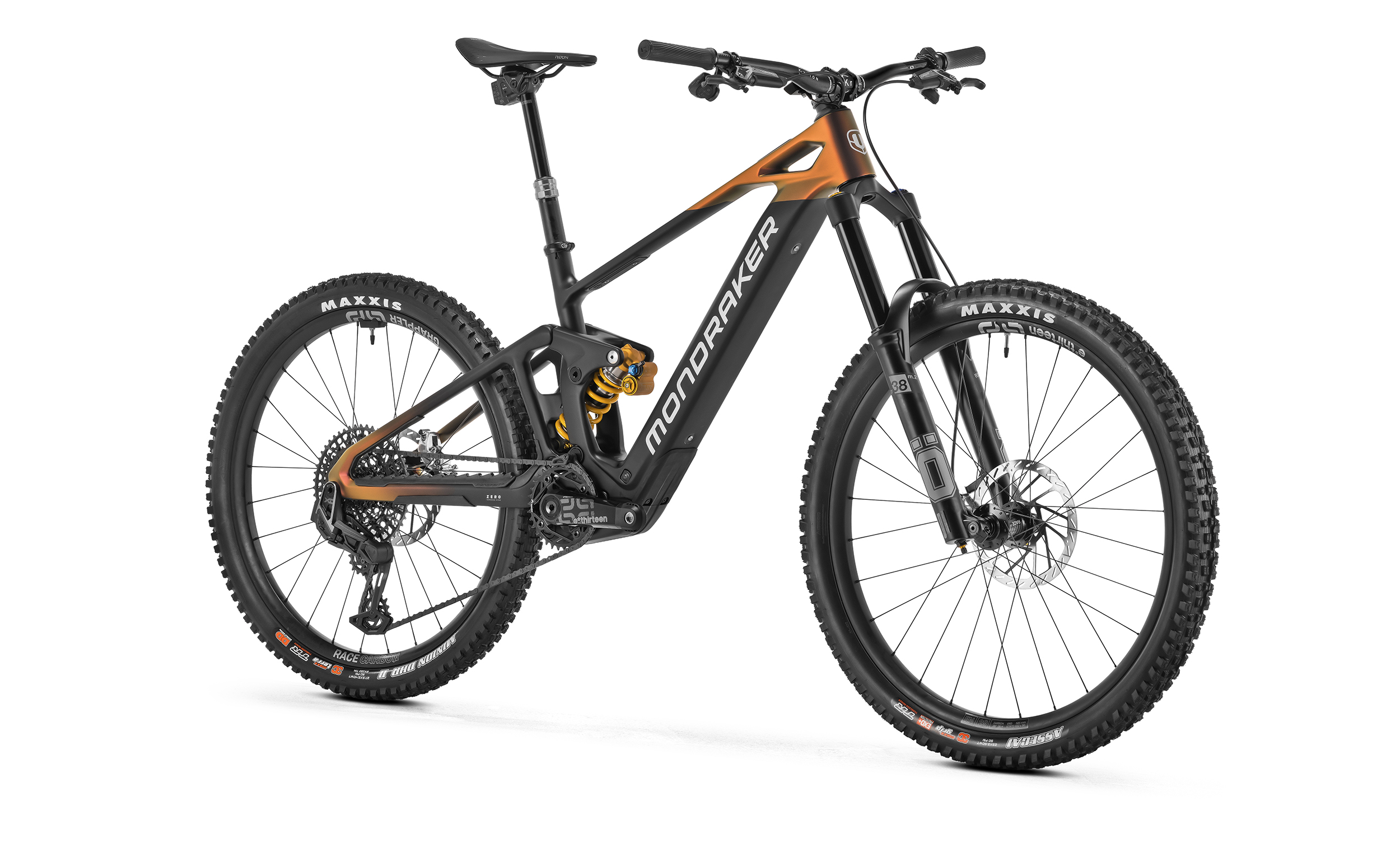

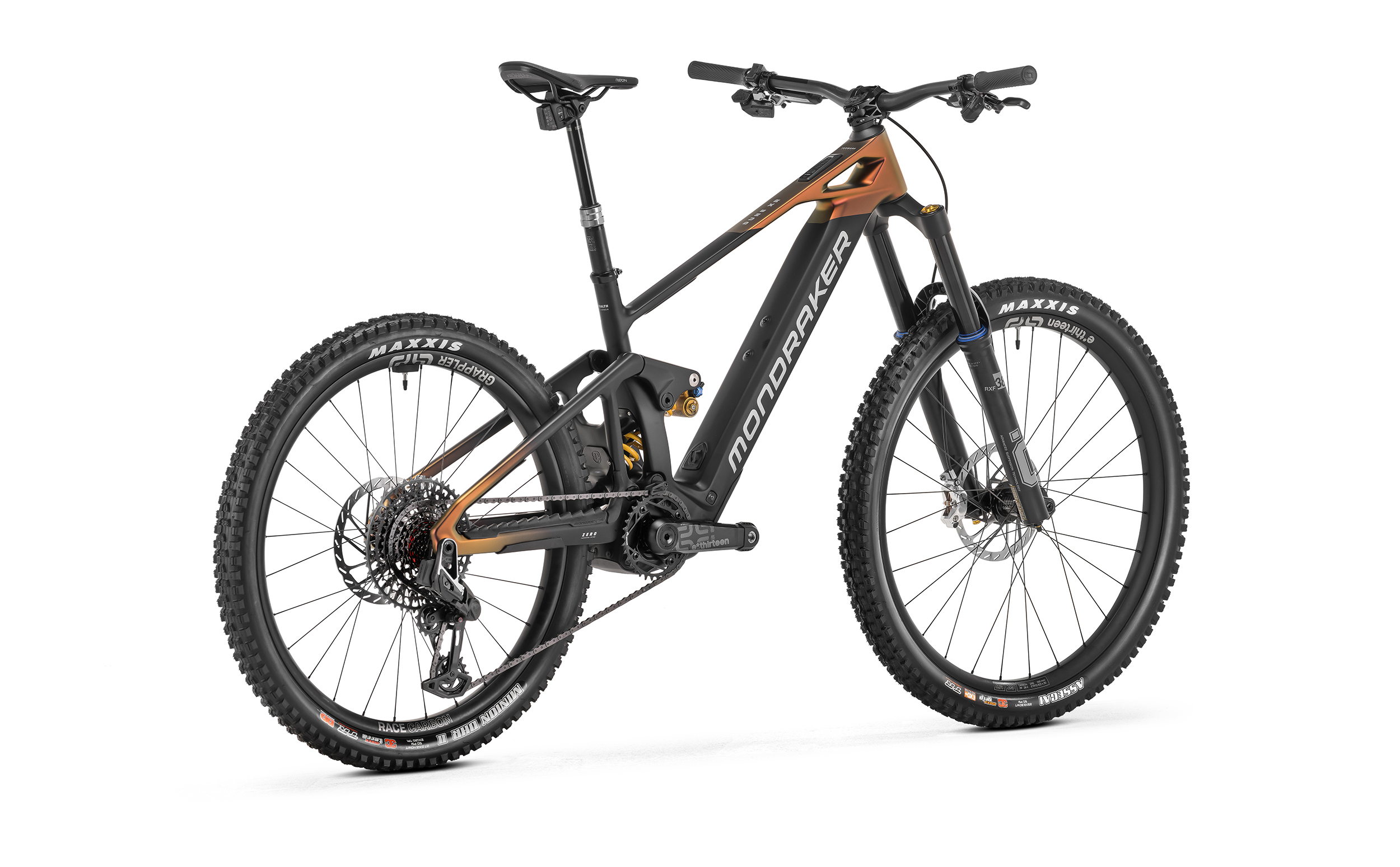

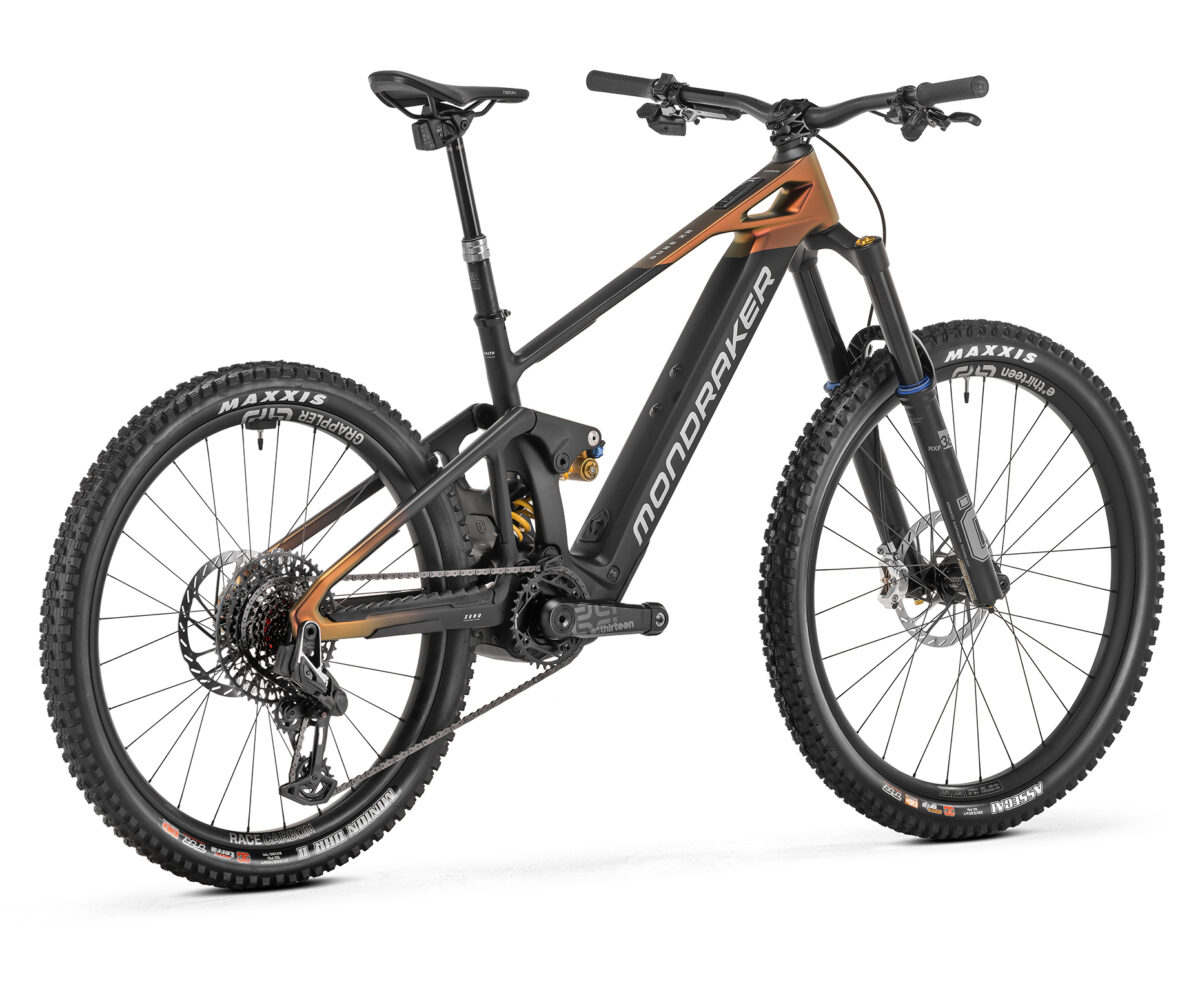

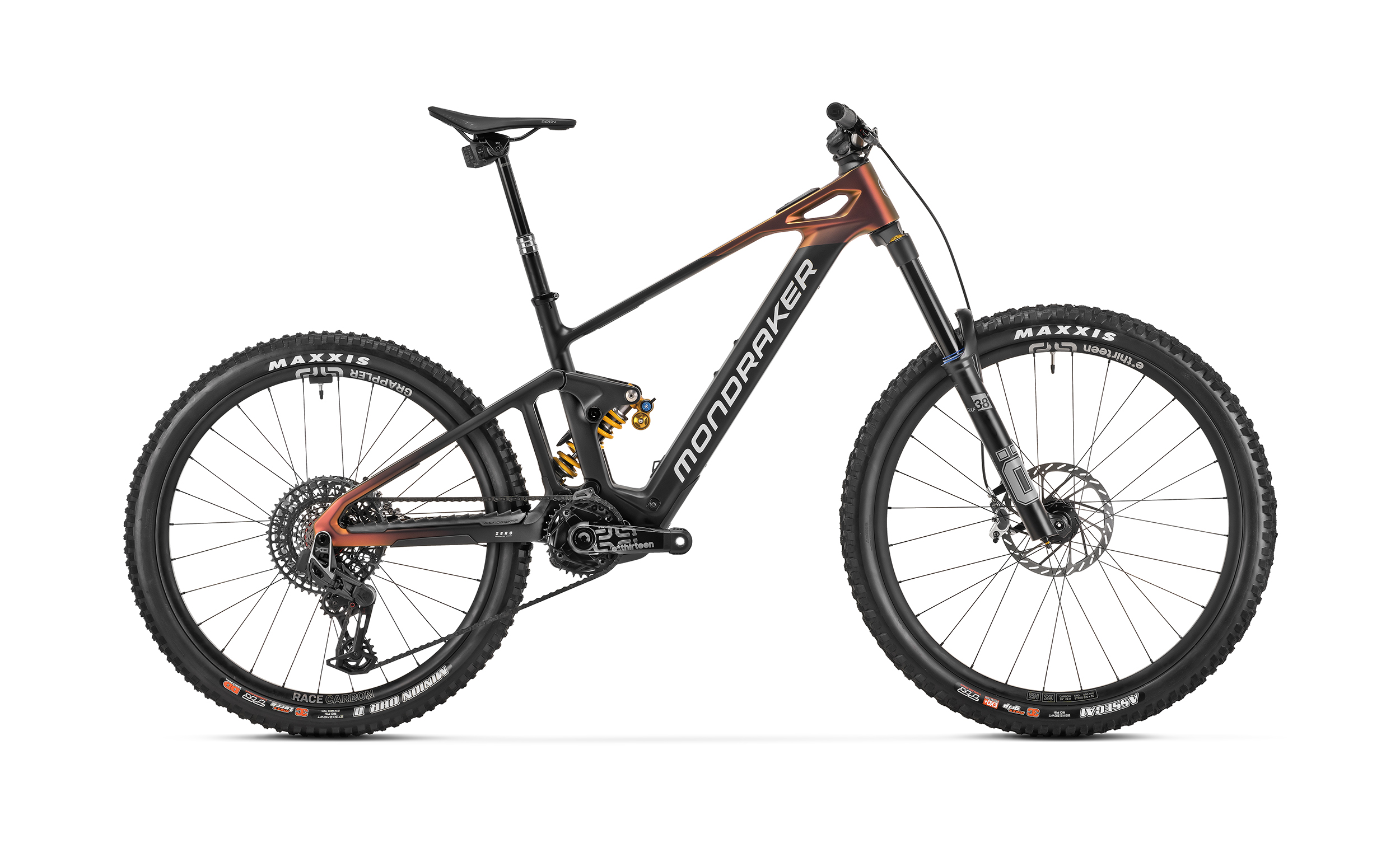

DUNE XR : Mallisarjan kuningas, keisari ja hallitsija.
Se on mallisarjan ainoa versio jossa on 180 mm:n haarukka ja coil iskari.

180mm Öhlins RXF 38 M.2 29 -haarukka, Öhlins TTX22M.2 205x65mm iskunvaimennin, SRAM X0 Eagle AXS -vaihteisto T-Type, E.13 TRS Race -hiilikammet, SRAM Code Ultimate StealthShox Rever -jarrut, Rockb satulatolppa ja e13 Grappler Race Carbon vanteet.

COMPONENTS

TECHNICAL SPECS

Frame

Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C10 compression, R35 rebound. Spring rate: S size 334 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork

Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing
Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle

Fizik Terra Aidon Slim X5

Front brake

Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake

Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims

e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27”5 rear

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire

Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset

E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain

Sram X0 Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XG-1295, 10-52T, T-Type, 12s
Weight

19,7 kg

Display

Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh
