SPECIFICATIONS
| FRAME MATERIAL | Kona 6061 Aluminum Butted |
| SIZES | XS, S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona Project Two Aluminum Disc |
| CRANKARMS | Samox |

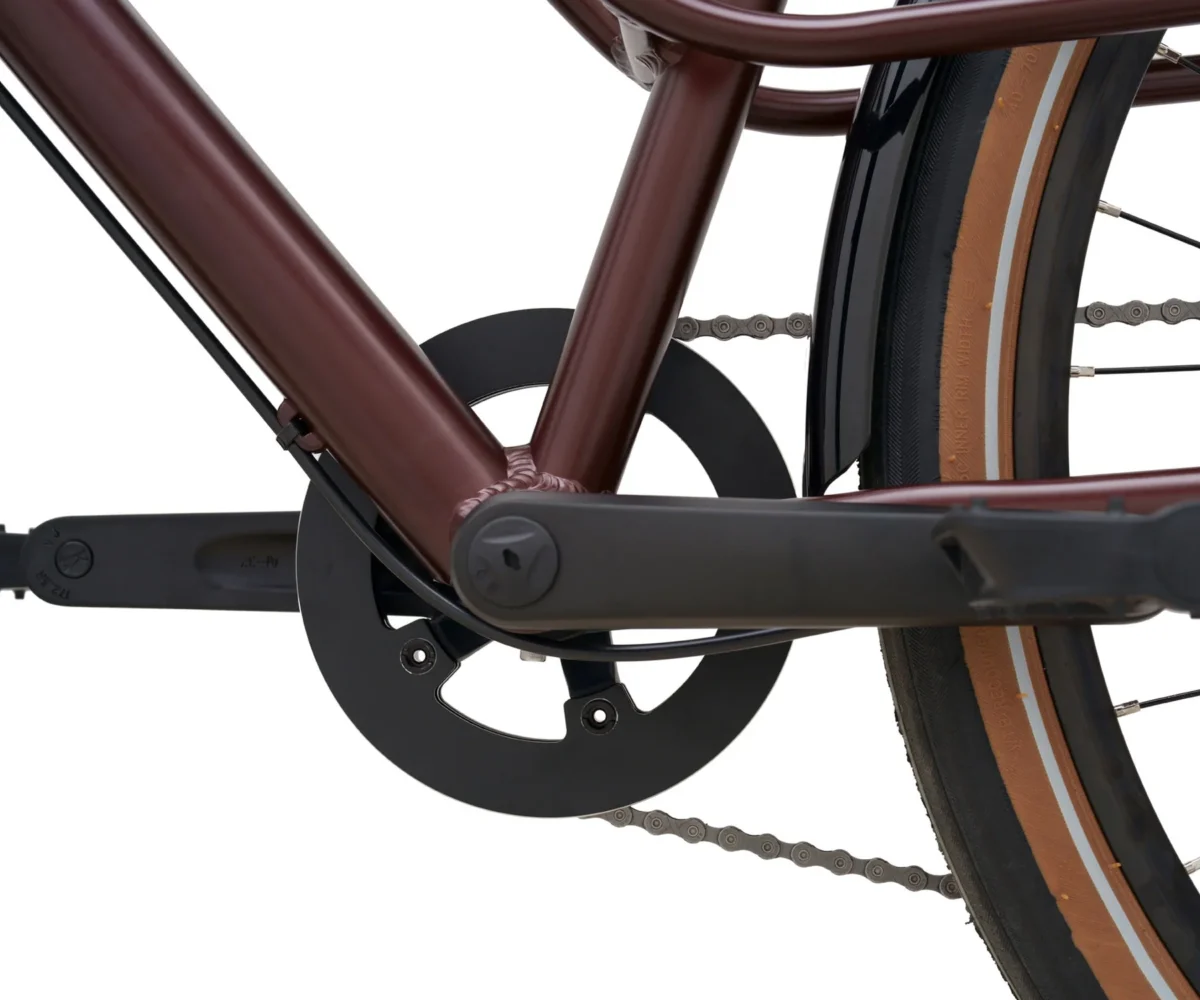

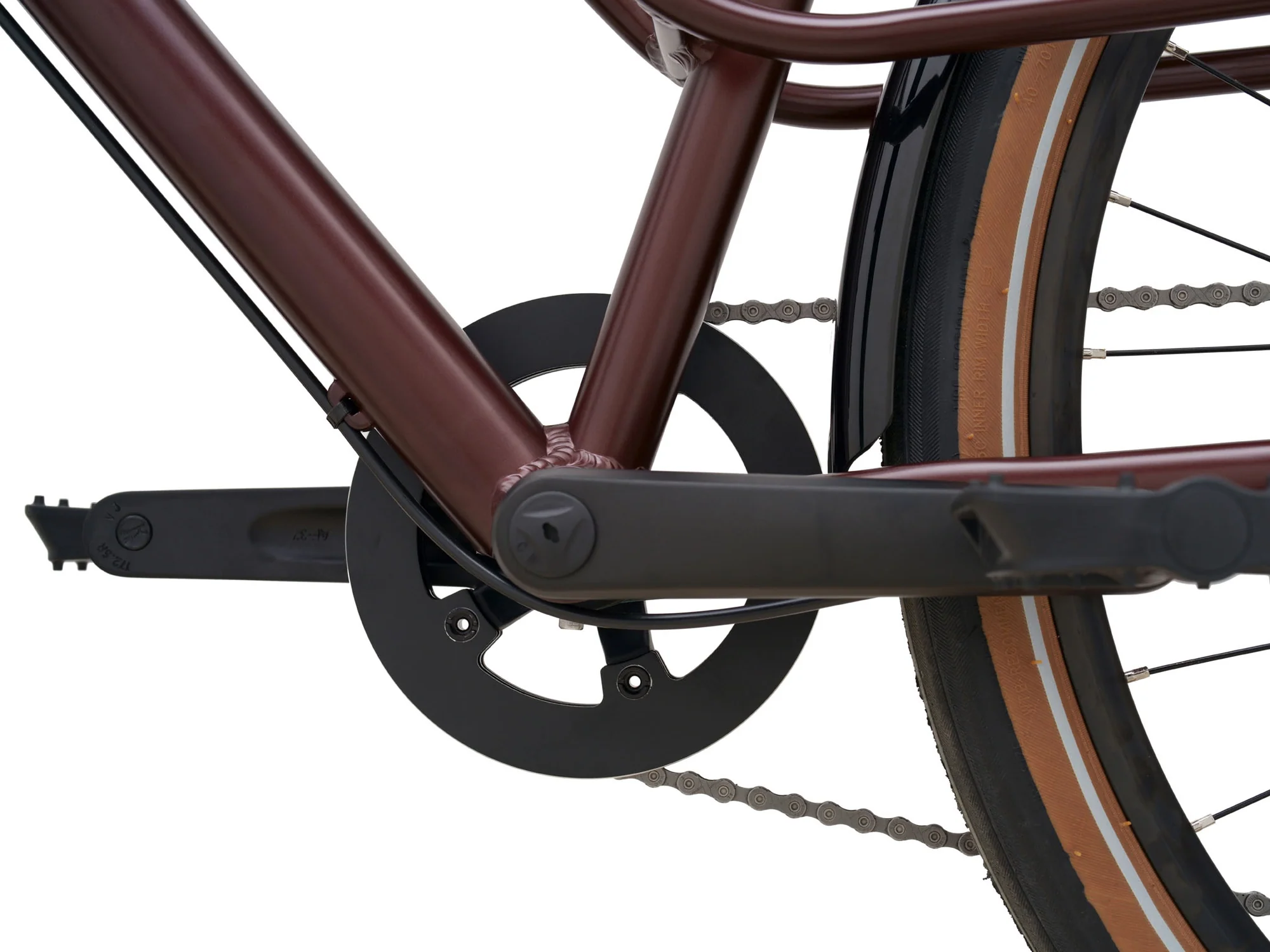

| CHAINRINGS | 39t/Guard |
| B/B | Feimin 68mm |
| PEDALS | Kona JS2 |
| CHAIN | KMC X9 |
| CASSETTE | Shimano HG200 11-32t 9spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | Shimano Alivio SGS |
| SHIFTERS | Shimano Acera |
| BRAKE CALIPERS | Clarks M2 Hydraulic |
| FRONT BRAKE ROTOR | Clarks M2 160mm |
| REAR BRAKE ROTOR | Clarks M2 160mm |
| BRAKE LEVERS | Clarks M2 Hydraulic |
| HEADSET | Feimin FP-H863 |
| HANDLEBAR | Kona Handplant |
| STEM | Kona Commuter |
| SEATPOST | Kona Thumb w/Offset 27.2mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Velo Ergo |
| SADDLE | Kona Commuter |
| FRONT HUB | Formula 100x9mm |
| REAR HUB | Formula 135x10mm |
| SPOKES | Stainless Black 14g |
| RIMS | Double Wall Alloy |
| FRONT TIRE | WTB Horizon Comp w/ Puncture Protection 650x47c |
| REAR TIRE | WTB Horizon Comp w/ Puncture Protection 650x47c |
| PAINT COLOR | Gloss Dusky Purple w/ Charcoal & Nimbus Decals |
| EXTRAS | Fenders w/ Mudflaps & Kickstand |
GEOMETRY
| SIZE | XS | S | M | L | XL | |
| 1 | ST LENGTH | 370 | 420 | 470 | 520 | 580 |
| 2 | TT LENGTH | 522 | 550 | 596 | 636 | 686 |
| 3 | REACH | 385 | 395 | 423 | 439 | 465 |
| 4 | STACK | 550 | 578 | 606 | 644 | 681 |
| 5 | STANDOVER | 525 | 543 | 546 | 553 | 582 |
| 6 | HT ANGLE | 70 | 70 | 70 | 70 | 70 |
| 7 | HT LENGTH | 115 | 145 | 175 | 215 | 255 |
| 8 | ST ANGLE | 76 | 75 | 74 | 73 | 72 |
| 9 | CS LENGTH | 450 | 450 | 450 | 450 | 450 |
| 10 | BB DROP | 70 | 70 | 70 | 70 | 70 |
| 11 | BB HEIGHT | 272 | 272 | 272 | 272 | 272 |
| 12 | WHEELBASE | 1057 | 1078 | 1115 | 1146 | 1185 |
| 13 | FRONT CENTER | 617 | 637 | 675 | 705 | 744 |
| 14 | FORK LENGTH | 410 | 410 | 410 | 410 | 410 |
| 15 | FORK OFFSET | 50 | 50 | 50 | 50 | 50 |
