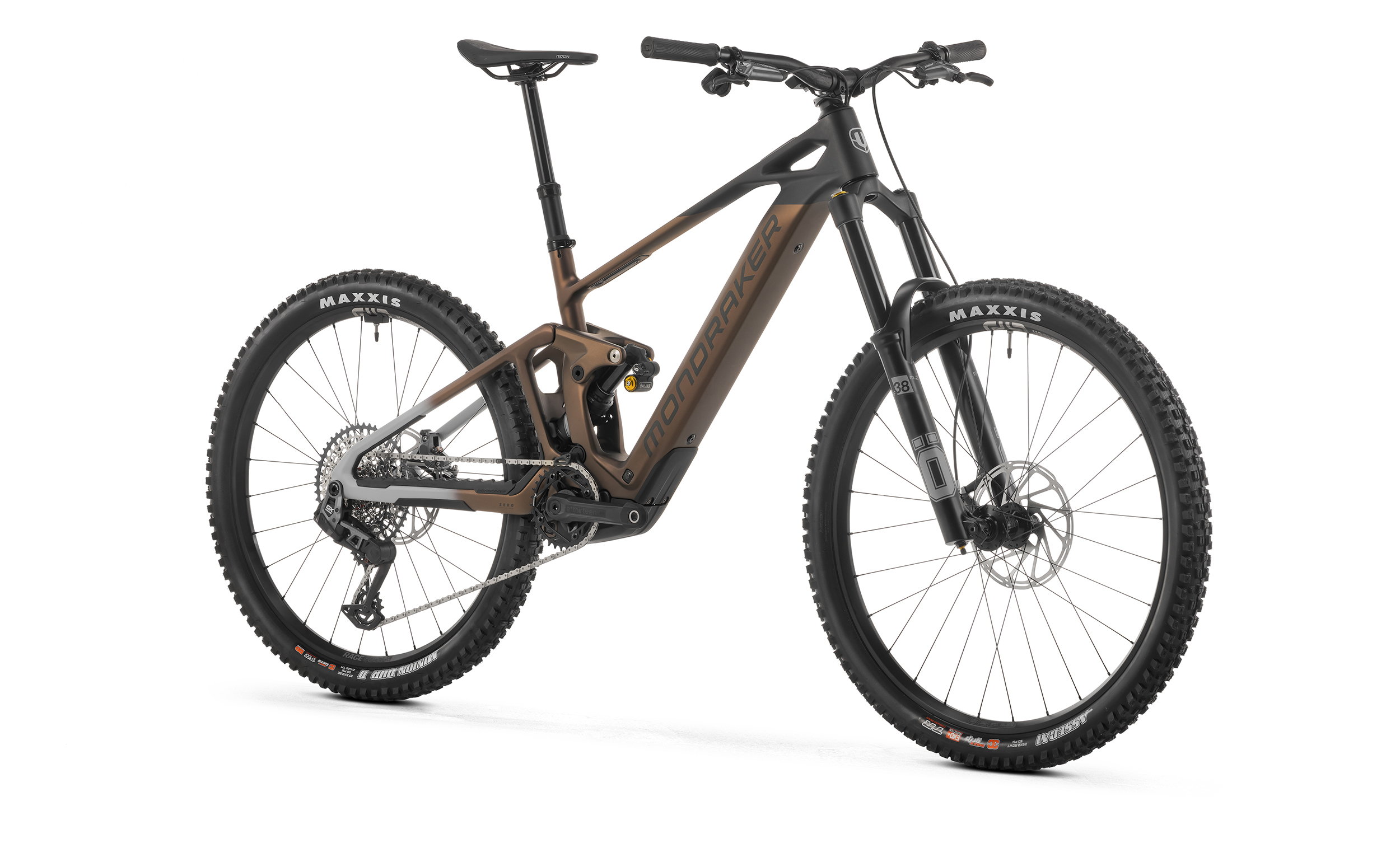

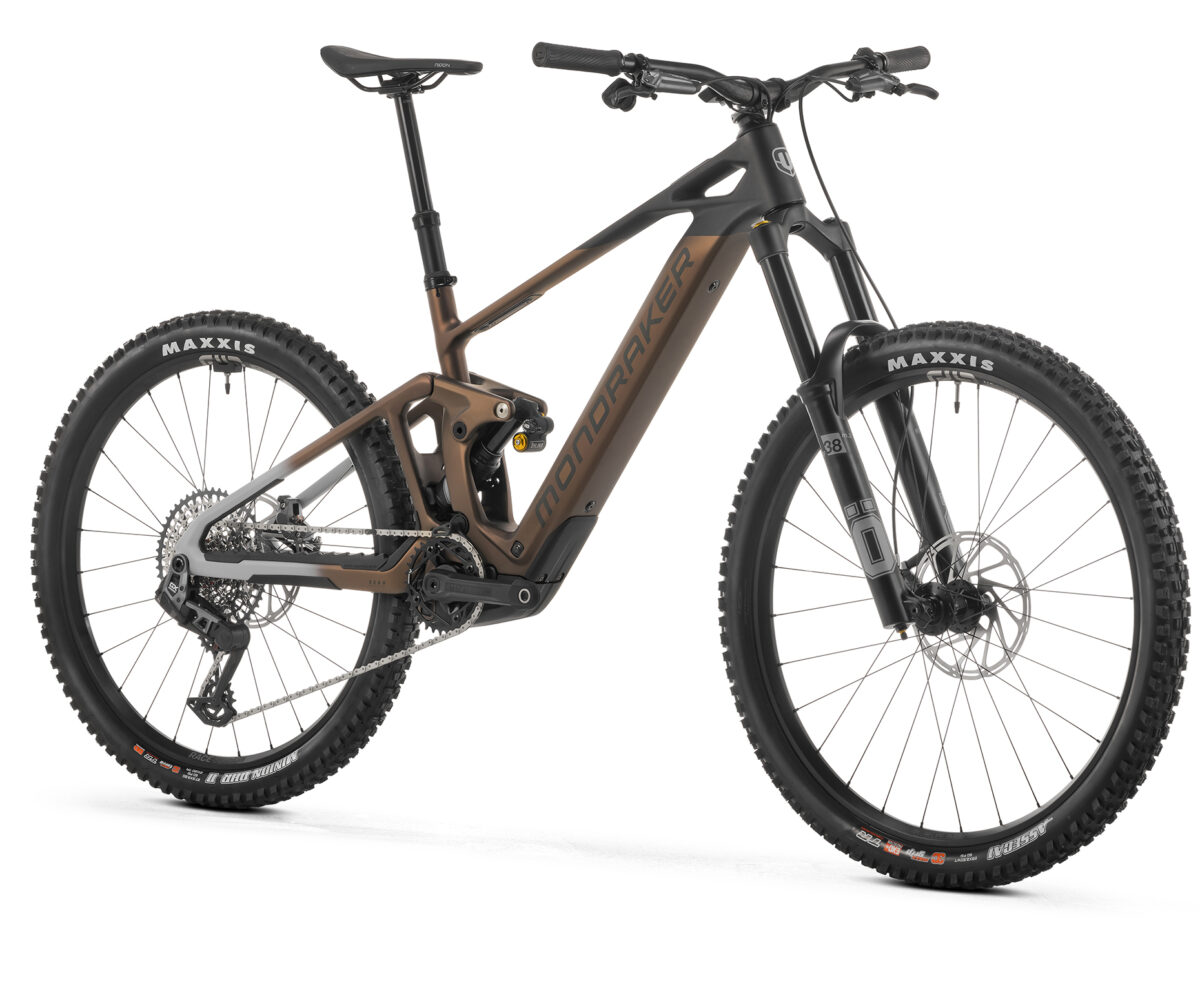

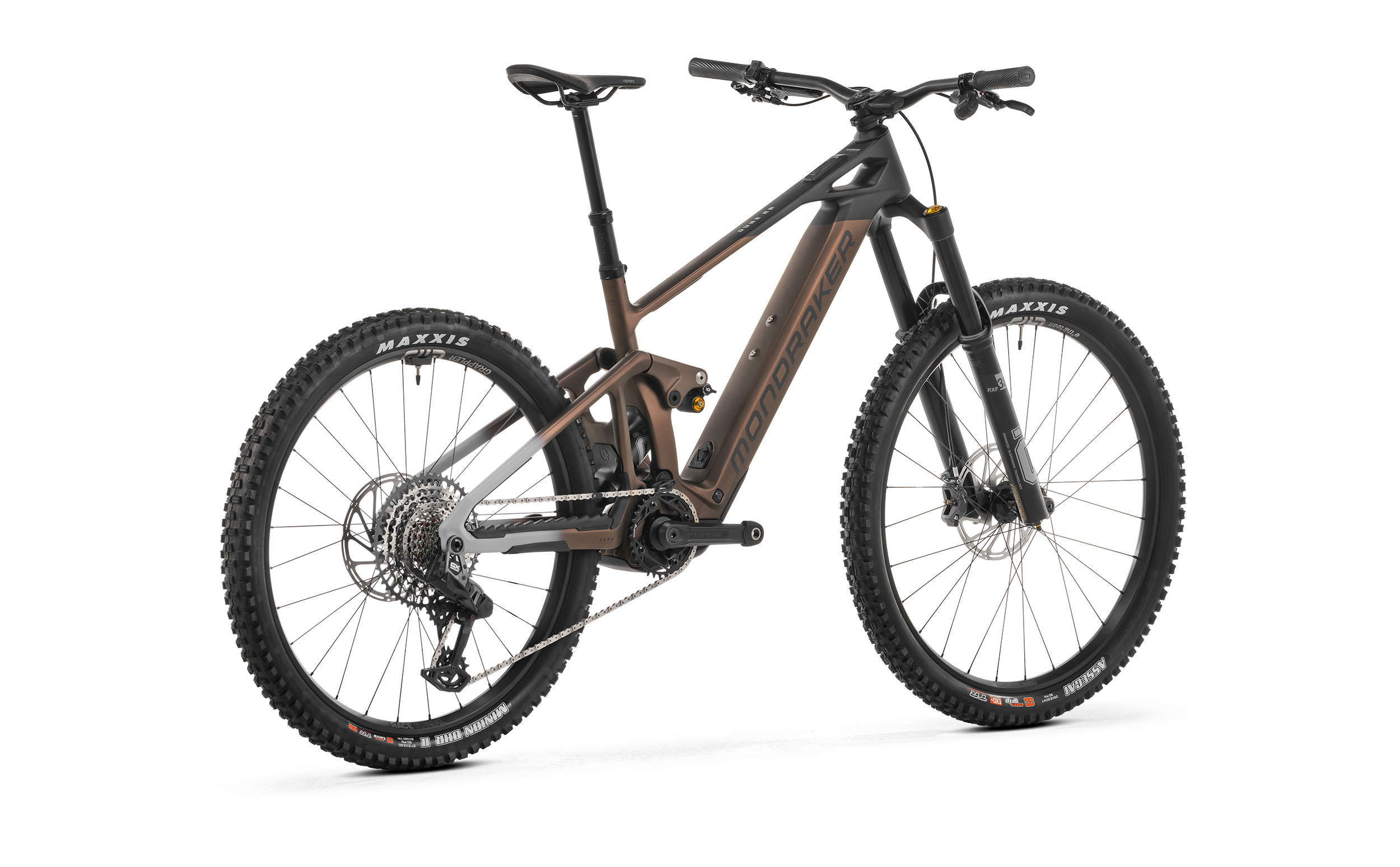

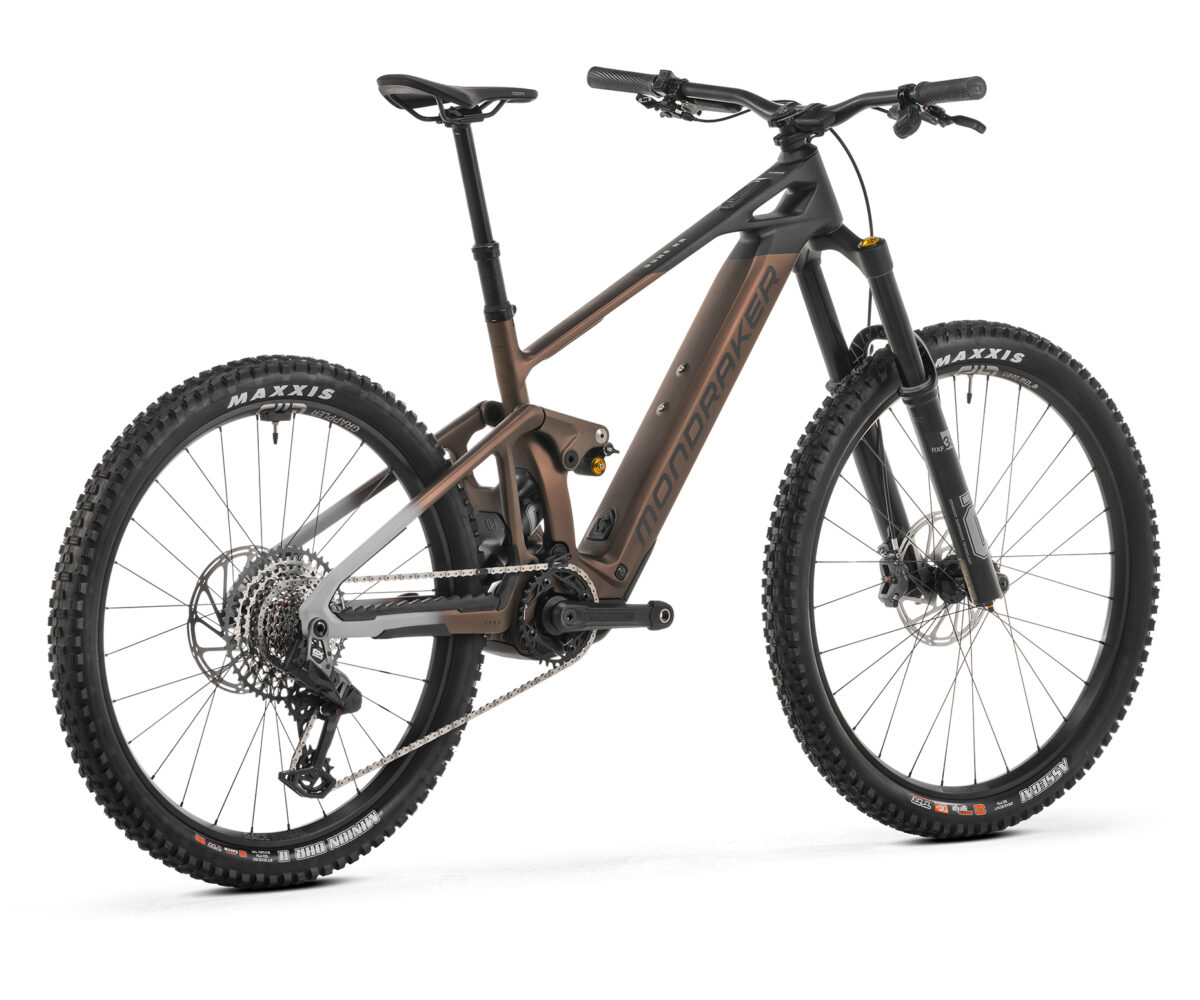

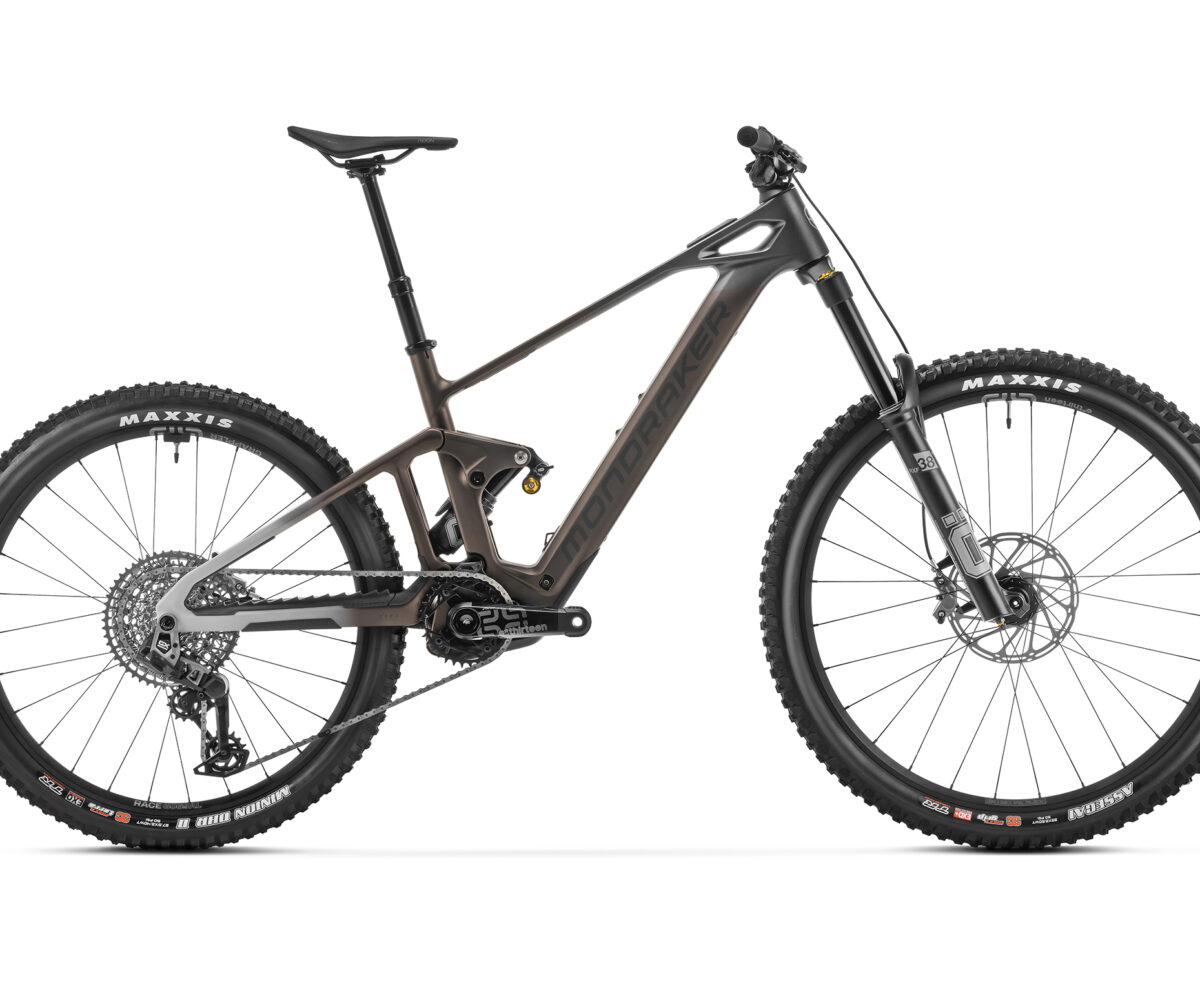

Mondraker Dune RR

Frame

Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C10 compression, R20 rebound. Volume reducers 12.000 (2xF+1D)

Fork

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Saddle

Fizik Terra Aidon Slim X5

Front brake

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Rims

e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27””5 rear

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

Front tire

Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset

e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram GX Eagle AXS T-Type,12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1275, 10-52T, T-Type, 12s

Weight

19,6 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh
